The Rapid Injection Molding Process: Complete Guide to 2025
What is the Rapid Injection Molding Process?
The rapid injection molding process is an advanced manufacturing technique designed to swiftly and efficiently produce parts, effectively bridging the gap between initial prototypes and mass production. This method is ideal for manufacturing anywhere from a few units to as many as 10,000 parts within weeks. Its combination of speed, accuracy, and flexibility has made it a go-to choice for companies across industries such as electronics, automotive, and aerospace. By streamlining tooling and production steps, this process accelerates product development cycles and reduces costs, making it invaluable for projects with tight deadlines or frequent design changes.
How is Rapid Injection Molding Different from Standard Injection Molding?
While both rapid injection molding and standard injection molding rely on injecting molten material into a mold to form parts, they differ significantly in their approach and application. Understanding these differences helps businesses choose the right method for their needs.
Key Differences:
- Speed: Rapid injection molding prioritizes fast production cycles. By simplifying the mold design and production process, manufacturers can reduce lead times dramatically.
- Tooling: Traditional injection molding often involves complex, durable steel molds designed for long-term use. In contrast, rapid injection molding typically utilizes aluminum molds, which are easier and faster to produce.
- Volume: Rapid injection molding is ideal for low to medium production volumes (from a few parts to tens of thousands), while standard injection molding is better suited for high-volume production runs.
- Cost: The lower tooling costs of rapid injection molding make it a cost-effective solution for smaller batches or iterative designs.
How Does the Rapid Injection Molding Process Work?
The rapid injection molding process involves several crucial steps to ensure the timely delivery of high-quality parts:
1. Design and Prototyping
The process begins with detailed CAD (Computer-Aided Design) models that define part dimensions, material specifications, and surface finish. These digital designs serve as blueprints for mold creation. In some cases, 3D printing may be employed to produce rapid prototypes, allowing designers to quickly validate concepts and test functionality before investing in full-scale molds.

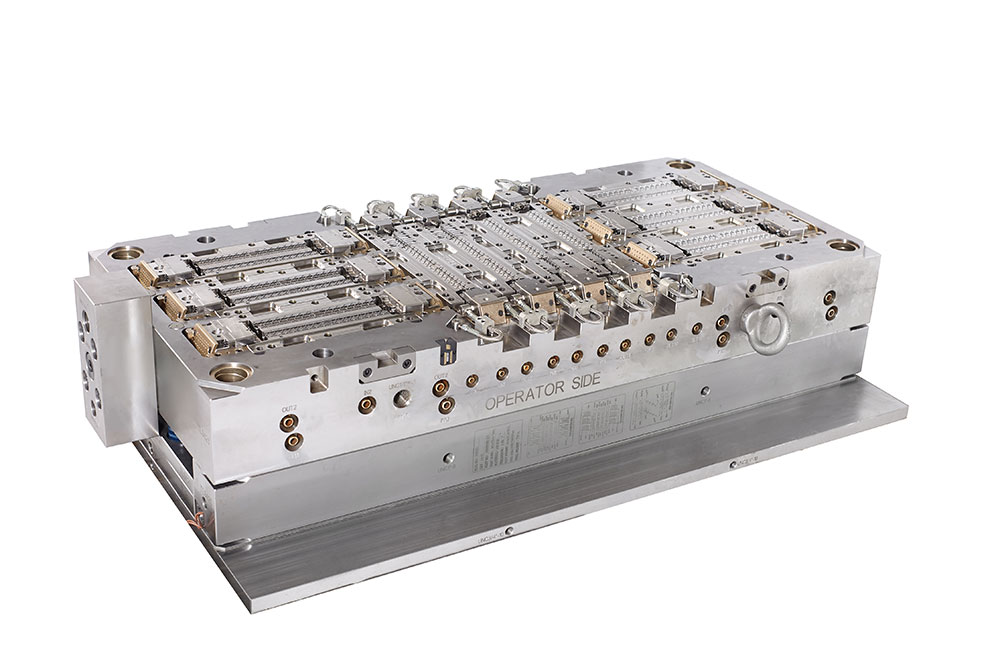

2. Mold Creation
Molds are typically produced using CNC (Computer Numerical Control) machining or EDM (Electrical Discharge Machining) techniques. CNC machining precisely carves mold cavities from aluminum, ensuring high accuracy. EDM, on the other hand, excels at crafting intricate details in mold surfaces. Aluminum molds are favored in rapid injection molding due to their fast turnaround, affordability, and suitability for low to medium production volumes.
3. Material Selection
Material selection plays a pivotal role in ensuring the final product meets performance expectations. Common resins used in rapid injection molding include:
- ABS for impact resistance and toughness.
- Polypropylene for flexibility and lightweight designs.
- Polycarbonate for high strength and optical clarity.
- Nylon for durability and heat resistance.
4. Injection Molding Process
The chosen thermoplastic resin is heated until molten and injected into the mold under high pressure. This step requires precision to ensure the resin fills every cavity, forming the desired part shape accurately.
5. Cooling and Ejection
Once the resin cools and solidifies, the finished parts are ejected from the mold. To speed up this process, cooling channels are often integrated into the mold design, ensuring even and consistent cooling.
6. Post-Processing
Post-processing steps such as trimming excess material, drilling holes, or painting may follow to enhance the part’s functionality and aesthetics. Assembly operations can also be performed if needed.
7. Quality Assurance
Every batch undergoes rigorous inspections to ensure dimensional accuracy, surface finish, and mechanical performance. Testing may involve visual inspection, tolerance checks, and stress testing depending on the product’s intended use.
8. Iteration (if needed)
One major advantage of the rapid injection molding process is the ability to refine designs quickly. If issues arise during testing, changes can be applied rapidly to improve the mold or part design, ensuring a better final product.
What Equipment is Used in the Rapid Injection Molding Process?
The rapid injection molding process relies on specialized equipment designed to ensure fast production, precision, and repeatability. Key equipment includes:

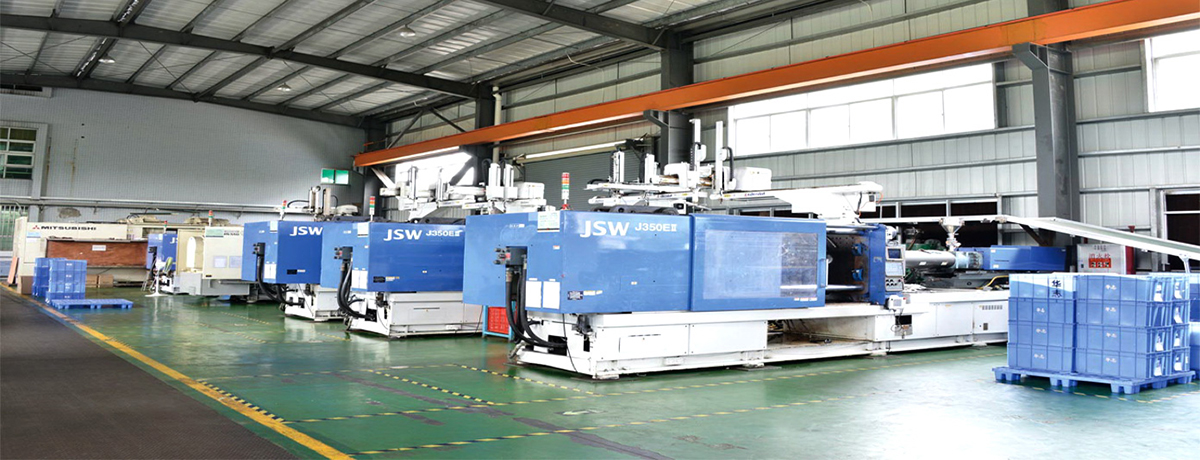

- Injection Molding Machines: These machines heat plastic resins and inject them into molds under controlled pressure to create parts efficiently.
- CNC Machines: Used to mill and carve molds with tight tolerances, ensuring intricate details are accurately formed.
- EDM Machines: Perfect for creating complex geometries and fine details in mold cavities.
- 3D Printers: Often used in the design phase to rapidly produce prototypes for testing and refinement.
- Aluminum and Steel Molds: Aluminum molds are preferred for rapid injection molding due to their faster manufacturing times and cost savings. Steel molds are sometimes used for higher durability or more demanding applications.
- Resin Dryers: These devices remove moisture from plastic resins before they are melted, improving part quality.
- Temperature Controllers and Chillers: These systems regulate mold and resin temperatures, ensuring consistent cooling and part formation.
- Robotic Systems: Automate part ejection, inspection, or secondary operations to improve efficiency and consistency.
How Do Rapid Injection Molding Molds Differ from Standard Molds?
Rapid injection molding molds are designed to prioritize speed and flexibility, making them distinct from standard molds in several ways:
Key Differences:
- Material: Rapid molds are typically made of aluminum, which is faster and easier to machine compared to steel molds.
- Simpler Design: To reduce production time, rapid molds often have fewer cavities and mechanisms.
- Lifespan: While steel molds can last for hundreds of thousands of cycles, rapid molds are designed for shorter runs (a few thousand to tens of thousands of parts).
- Cost Efficiency: Since rapid molds require less machining time and simpler designs, they are more affordable, making them ideal for iterative product development and prototyping.
Benefits of the Rapid Injection Molding Process
The rapid injection molding process offers numerous advantages to manufacturers:
- Fast Turnaround: Parts can be produced in as little as a few days to a few weeks, making it ideal for urgent project timelines.
- Cost Efficiency: Lower tooling costs reduce expenses, especially for low-to-medium volume production runs.
- Flexibility: Perfect for iterative designs and frequent product modifications.
- Precision: Achieves complex geometries and tight tolerances with high accuracy.
- Scalability: Suitable for both prototype runs and small-scale production.
Industries Benefiting from the Rapid Injection Molding Process
- Consumer Electronics: Enables fast production of enclosures, phone cases, and device housings to meet evolving market trends.
- Aerospace Industry: Produces lightweight yet durable components such as air ducts, cabin fittings, and control knobs.
- Automotive Sector: Facilitates the creation of interior trim, dashboard parts, and small connectors for testing and production.
- Construction Industry: Ideal for manufacturing robust connectors, fittings, and fasteners for durable applications.
Conclusion
The rapid injection molding process is a fast, cost-effective, and precise solution for producing high-quality parts. Whether you require prototypes, small-batch production, or flexible design adjustments, this method offers unmatched versatility.
FAQ – Rapid Injection Molding Process
1. What is the typical lead time for the rapid injection molding process?
- Lead times typically range from 1 to 3 weeks depending on the complexity of the part and production volume.
2. What materials are suitable for the rapid injection molding process?
- Common materials include ABS, Nylon, Polycarbonate, Polypropylene, and PEEK.
3. How does the rapid injection molding process reduce costs?
- By using simplified aluminum molds and streamlined processes, tooling costs are minimized.
4. What industries benefit most from the rapid injection molding process?
- Electronics, automotive, aerospace, and construction industries frequently utilize this method.
5. Can the rapid injection molding process support complex geometries?
- Yes, this process excels at producing intricate designs with precision and detail.
